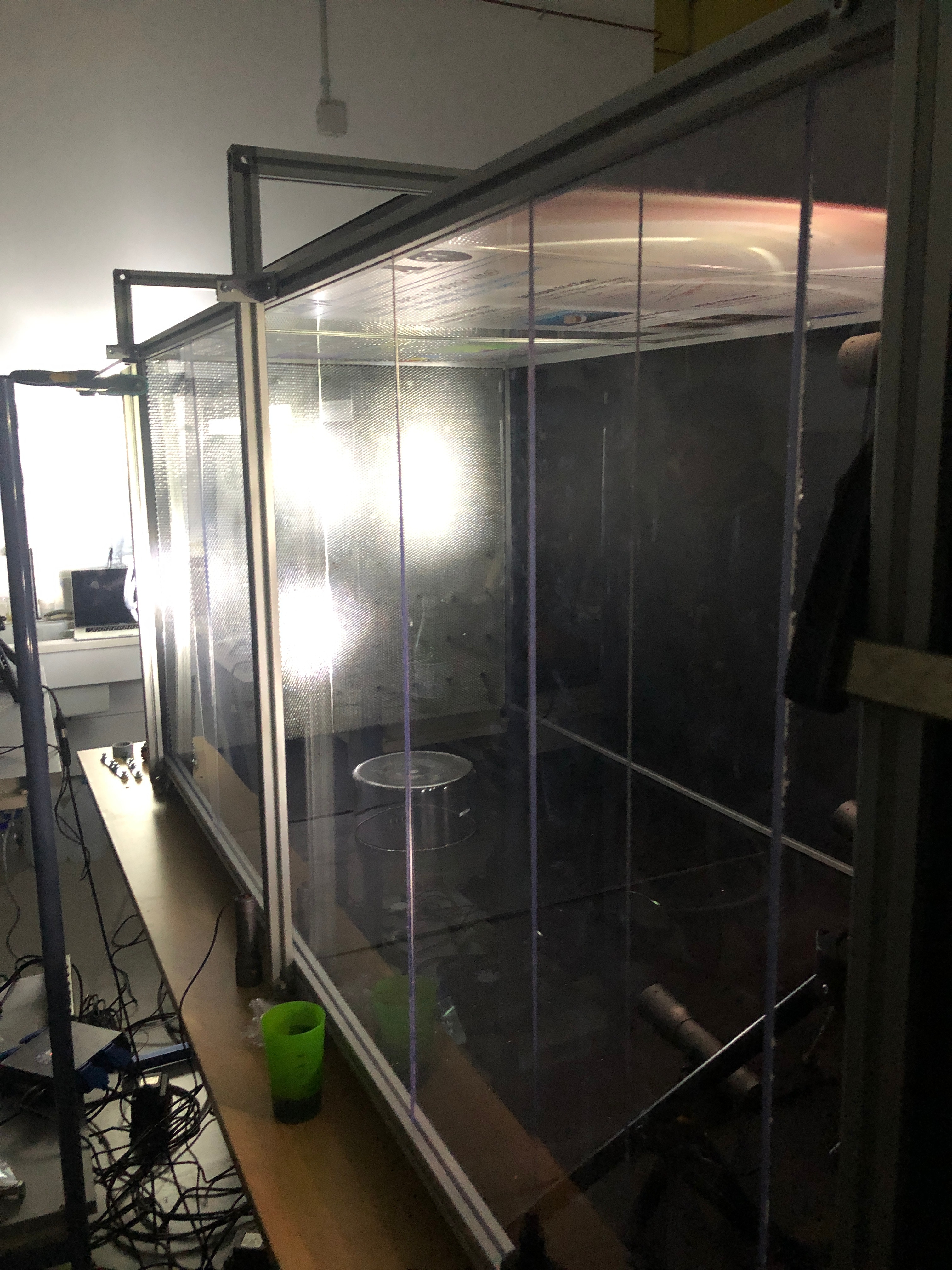

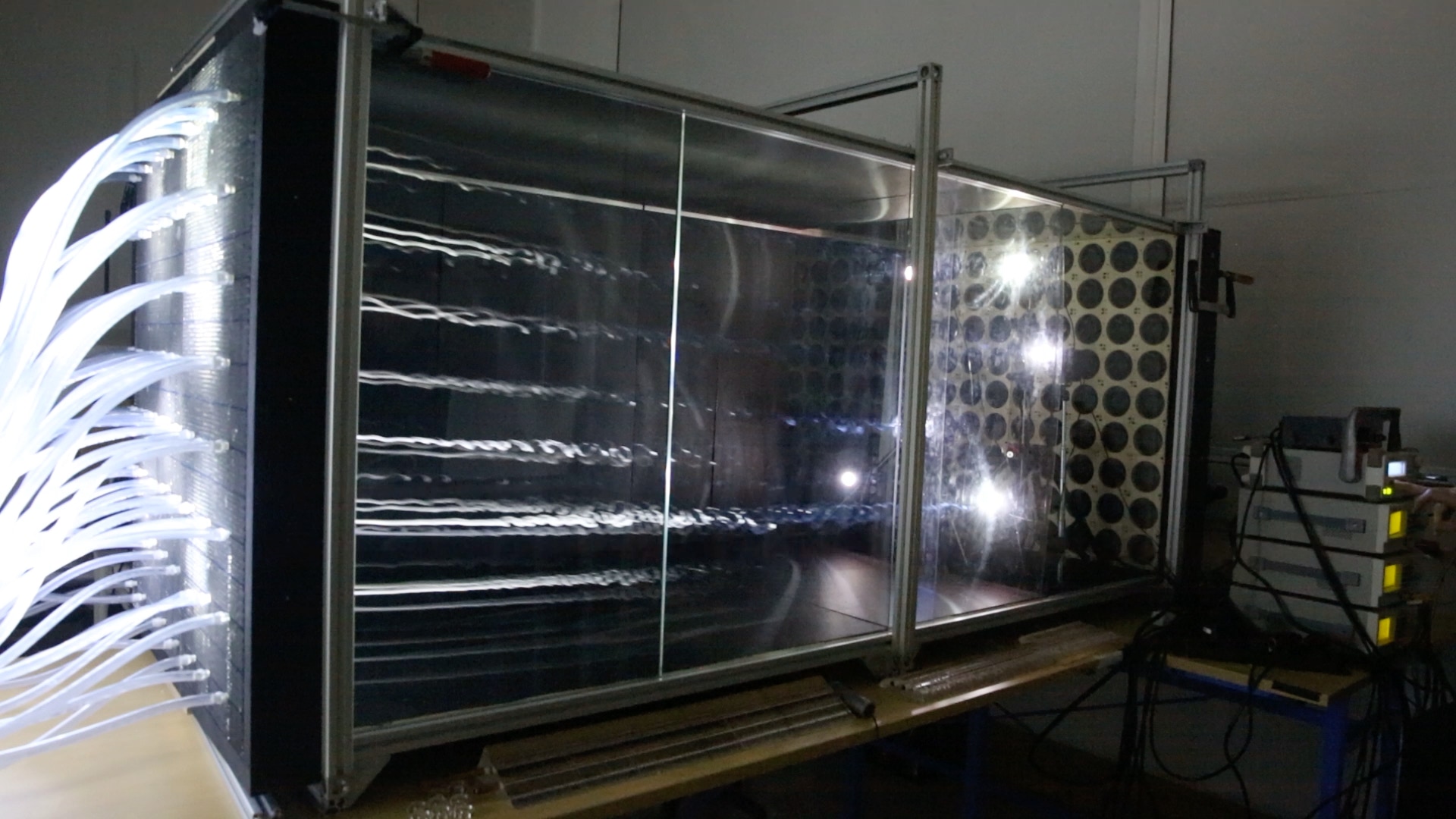

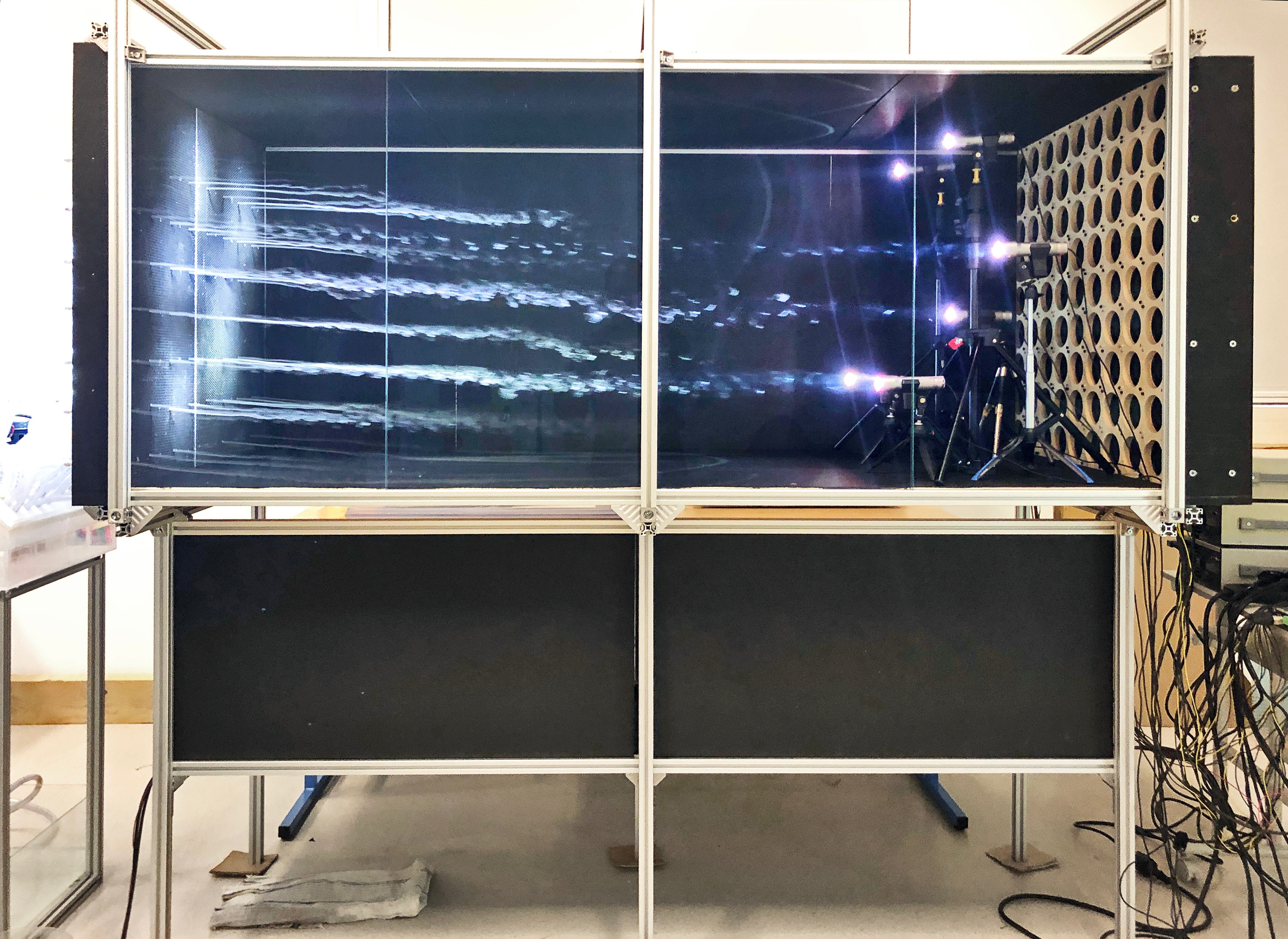

1 • View of the complete installation in its prototype phase.

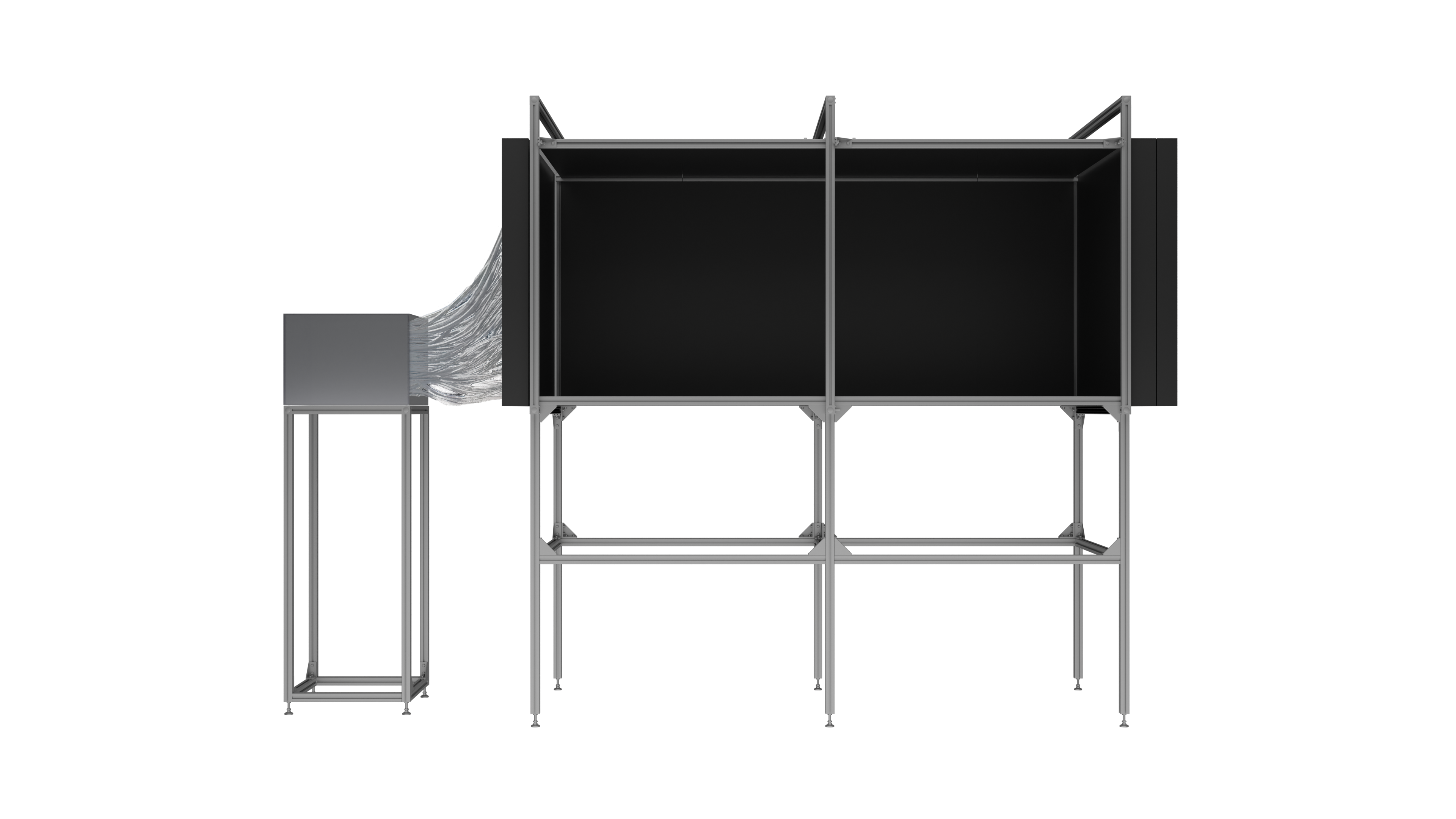

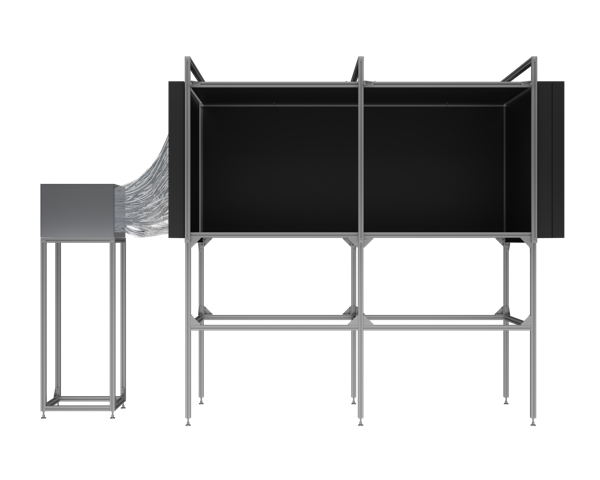

2 • Diagram of the installation. On the left, the module containing the mist generators, the compressors and the loudspeakers. On the right, the main enclosure. Both are connected by 64 vinyl tubes.

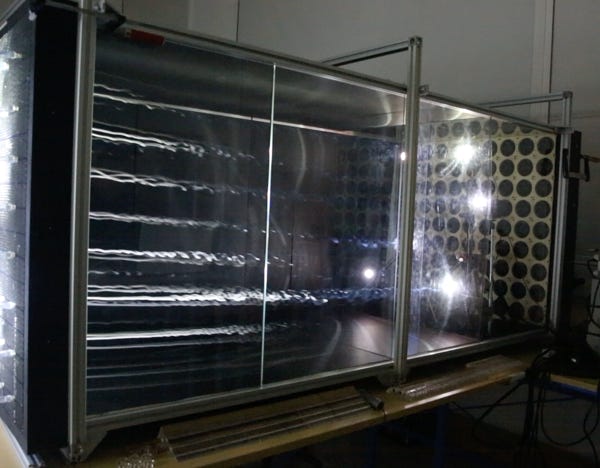

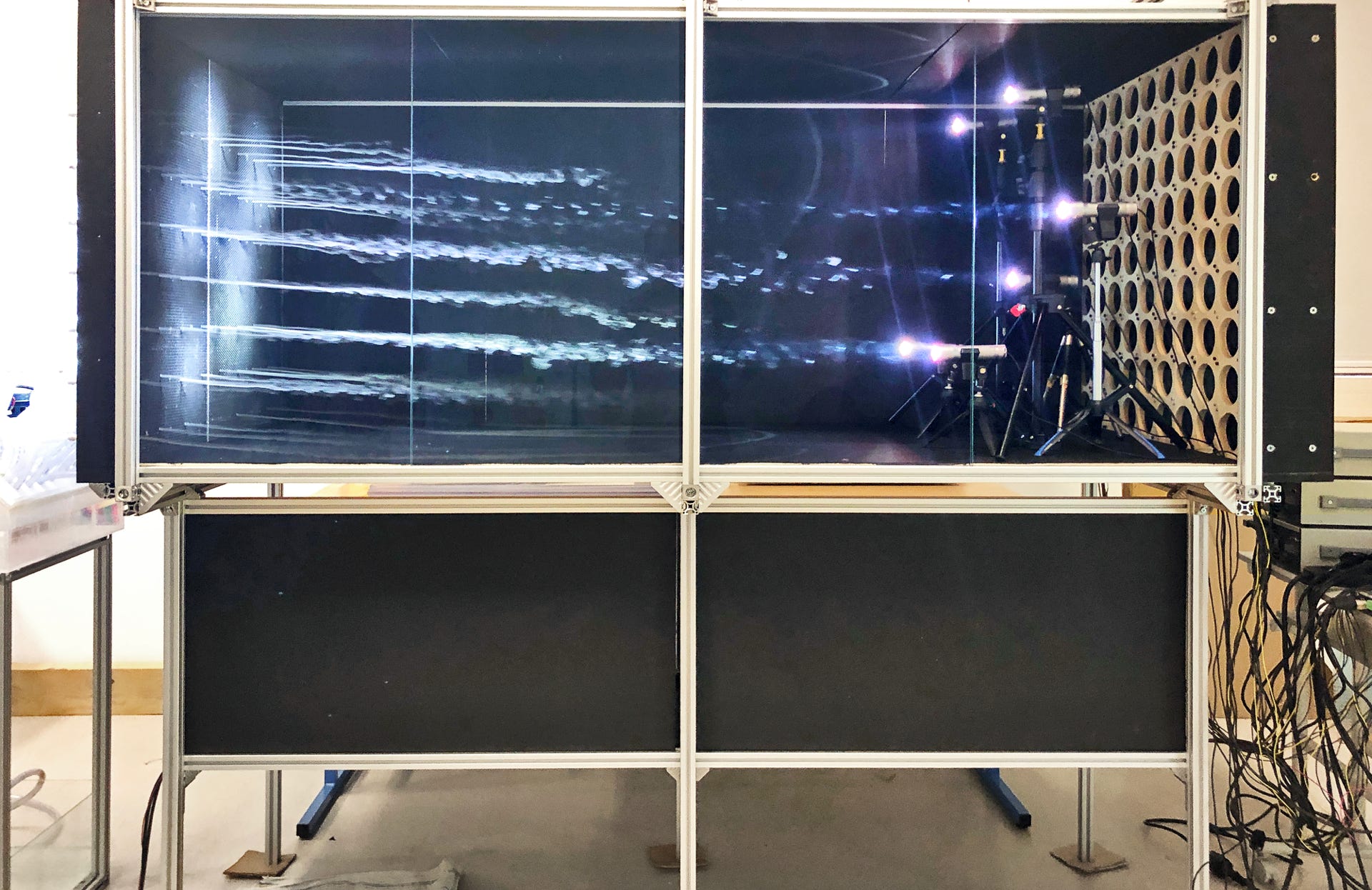

3 • The installation during its starting phase. The mist threads begin to travel through the enclosure. Their visibility is enhanced by the LED spotlights and by the ultra-black background.

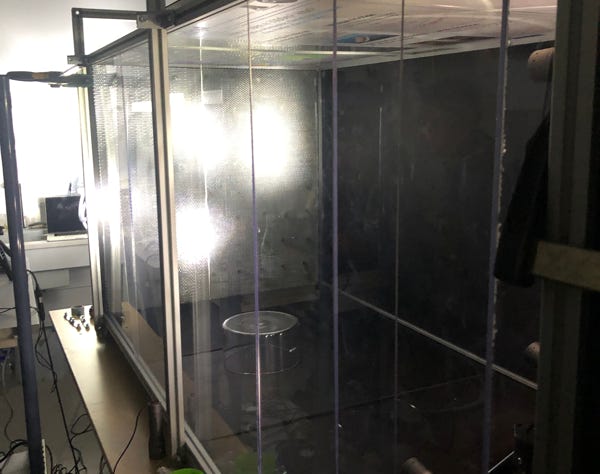

4 • Perspective view of the installation, showing from the inside the honeycomb panel that constitutes the air intake of the enclosure.

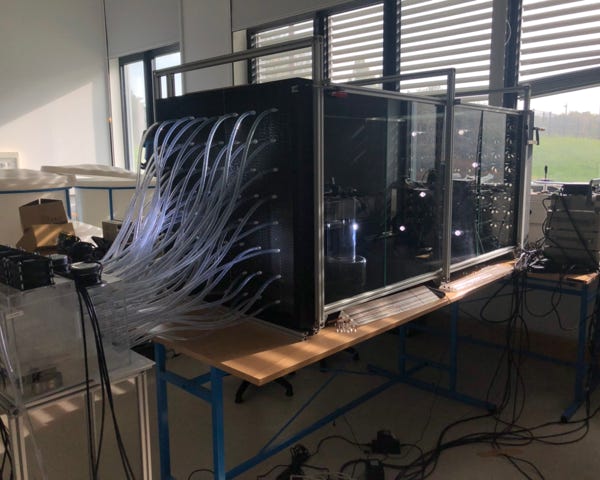

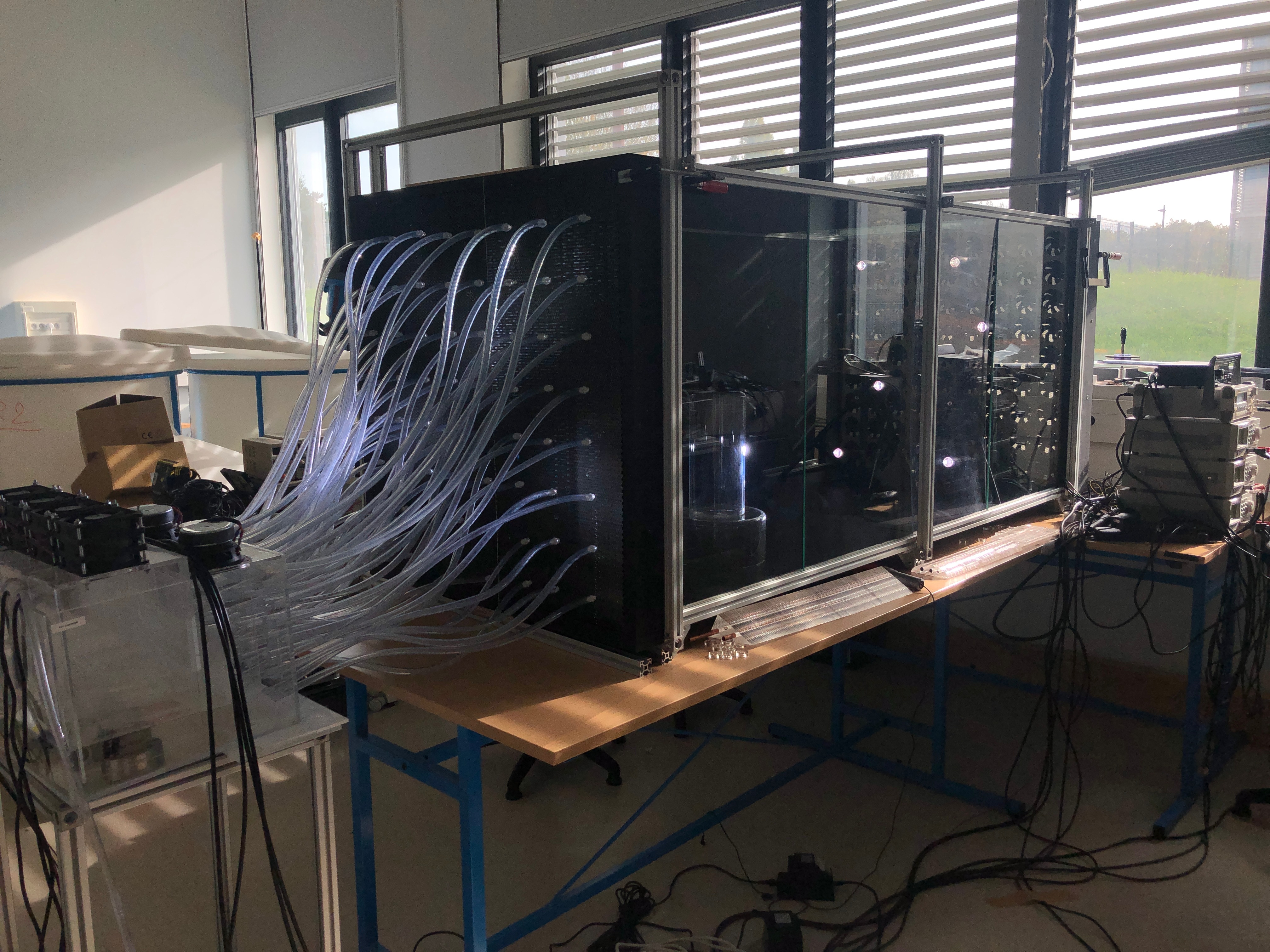

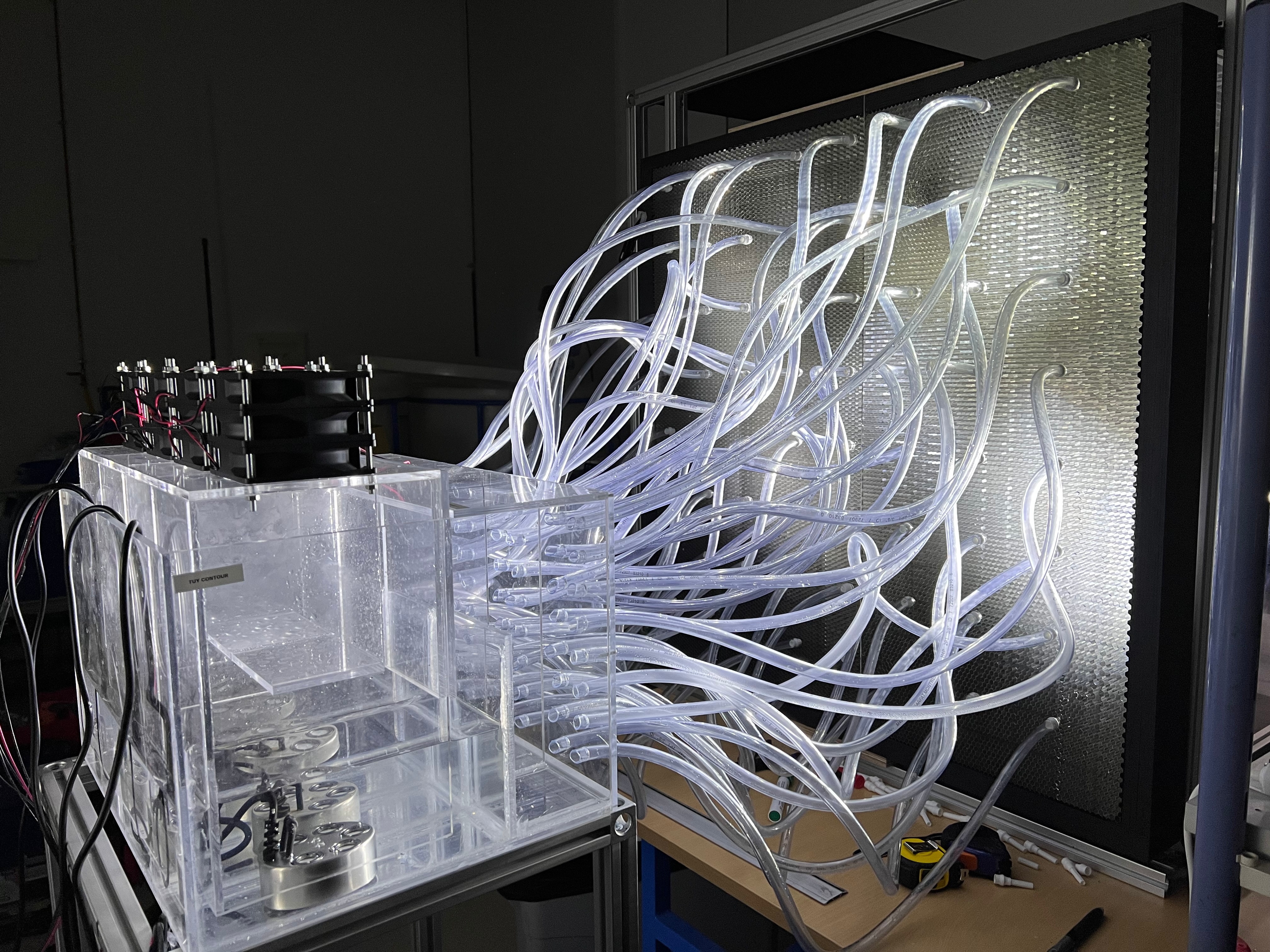

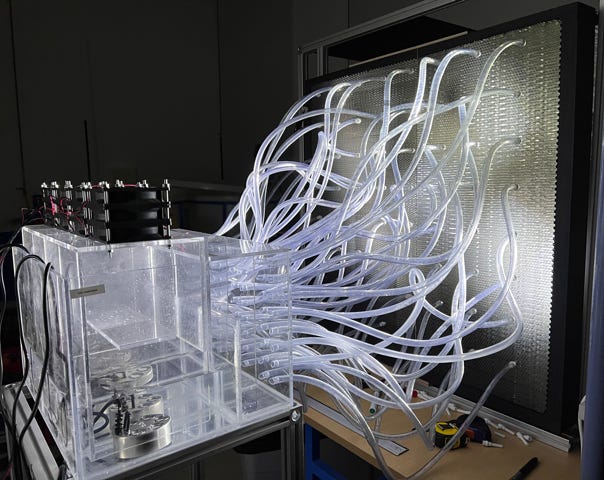

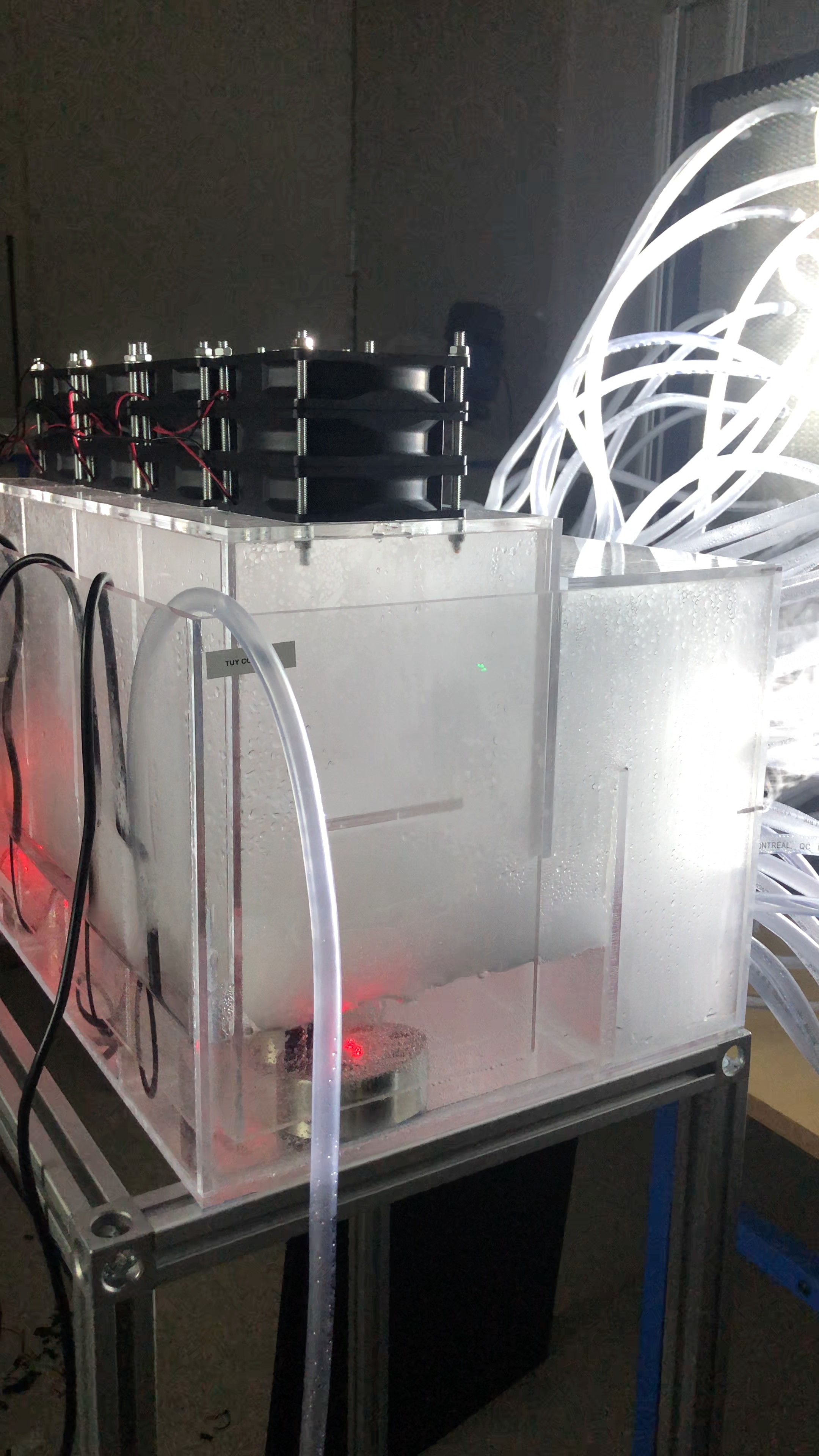

5 • View of the mist generator module. The compressors sit on the top. The mist generators themselves can be seen on the bottom; they are immersed in water. The 64 vinyl tubes are connected to the honeycomb panel intake by a streamlined manifold. The loudspeakers are not installed in this picture (see Fig. 7).

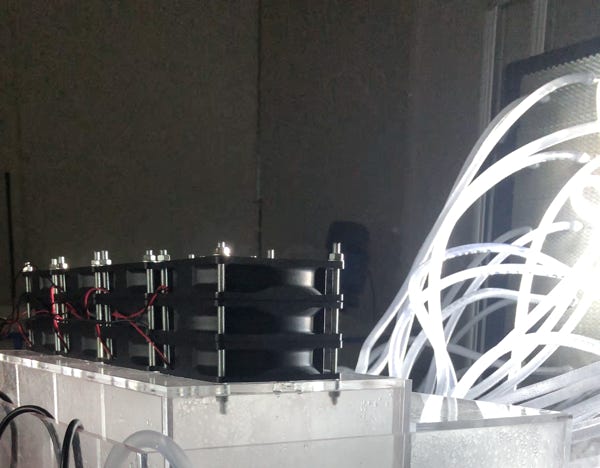

6 • Close-up of the compressors. Each compressor is made of three waterproof, silent micro-fans. The middle one is still and plays the role of a stator. The two other revolve in opposite directions. They create a pressure differential that drives the mist through the tubes and in the enclosure.

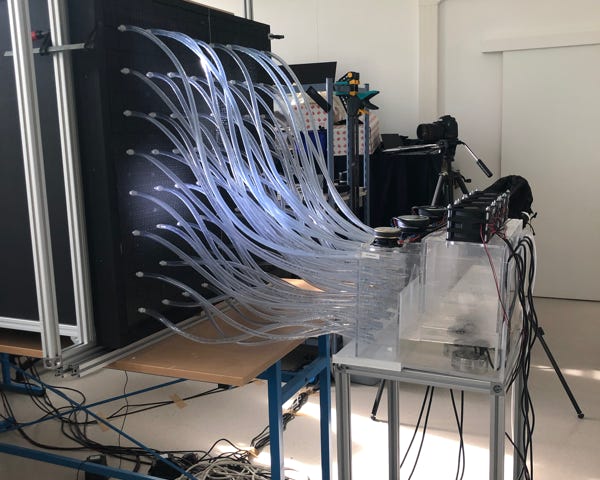

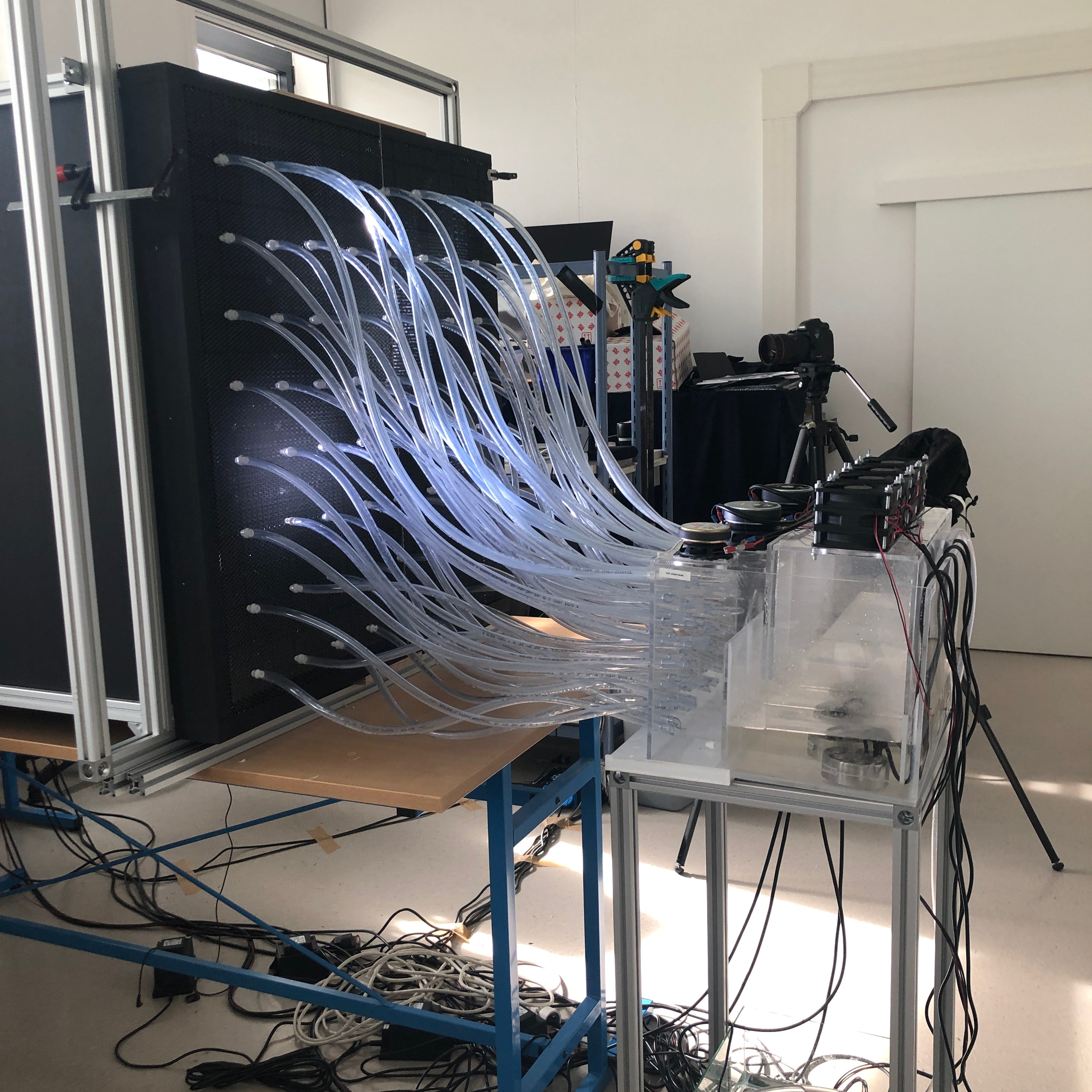

7 • Another view of the mist generator module. The loudspeakers can be seen in front of the compressors.

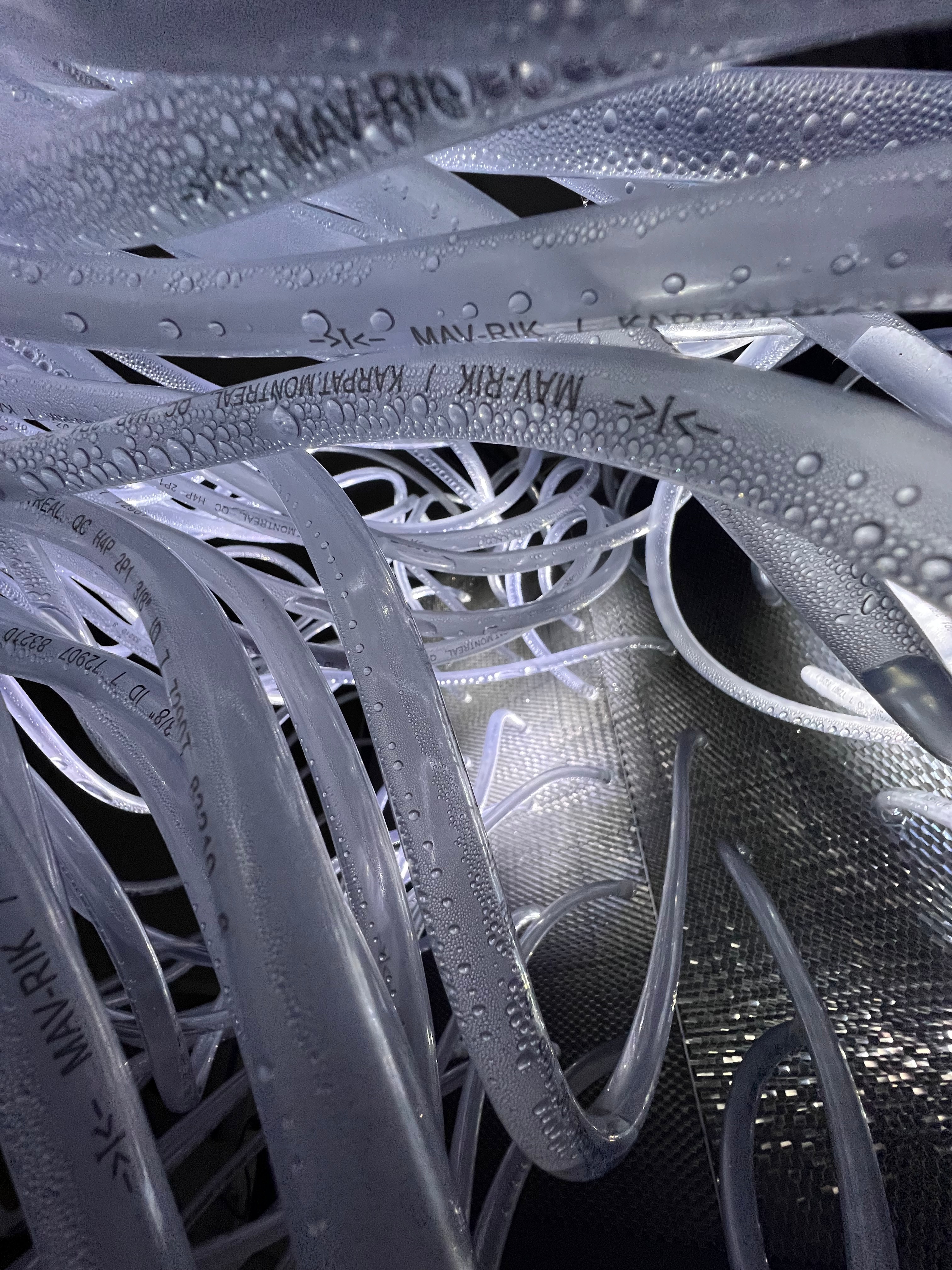

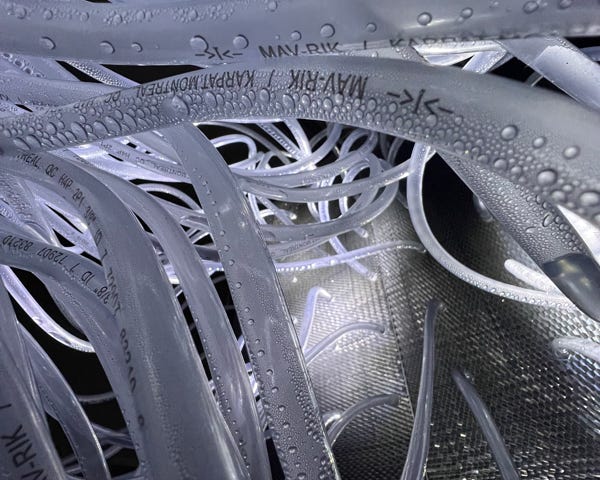

8 • Close-up of the vinyl tubes with mist and condensation droplets.

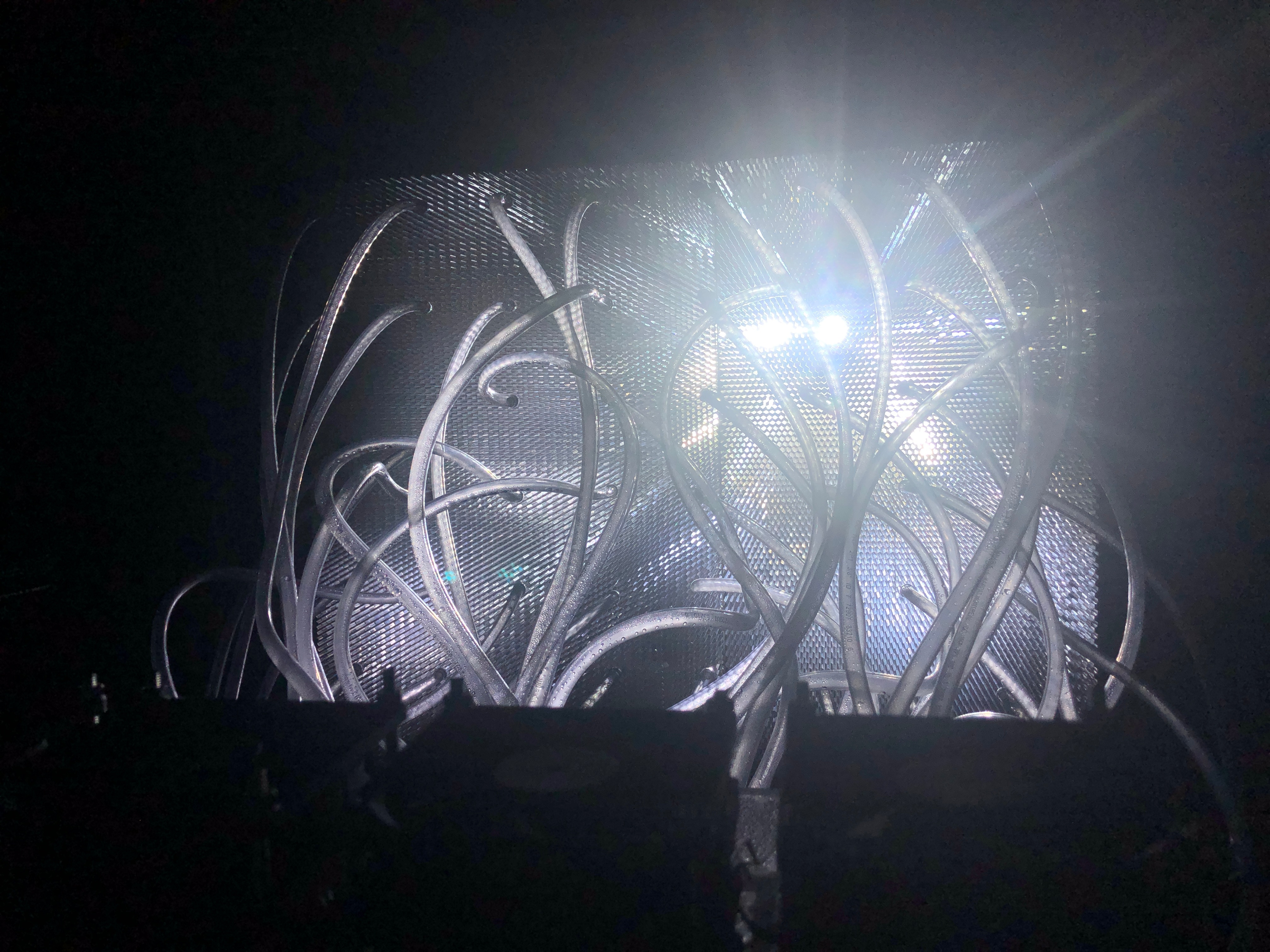

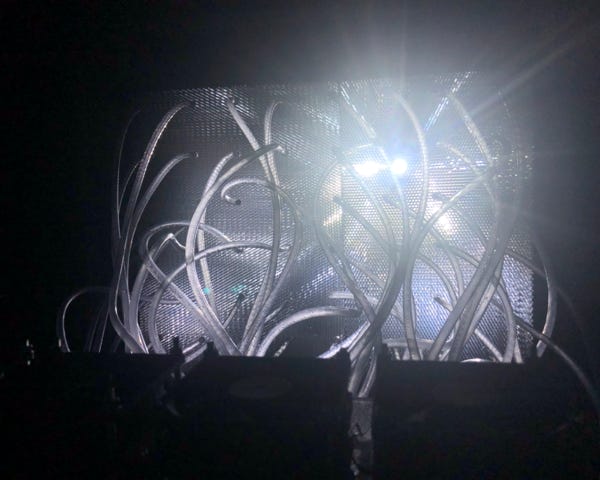

9 • View of the honeycomb panel air intake. The role of the honeycomb is to divide the air flow into a large number of laminar micro-streams, so as to allow the mist to maintain its configurations as long as possible. The light comes from the LED spotlights that are installed at the other ed of the enclosure.

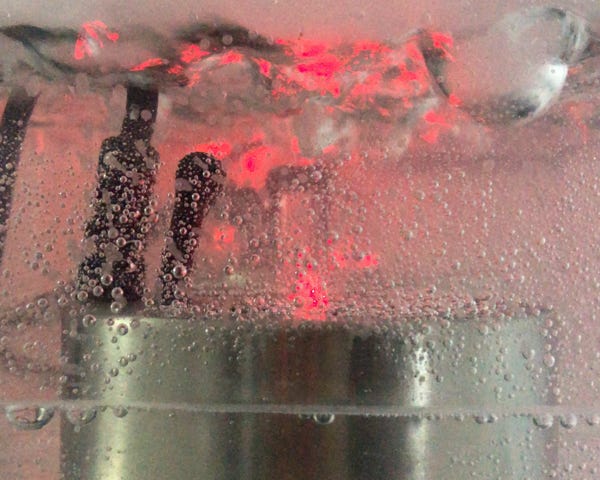

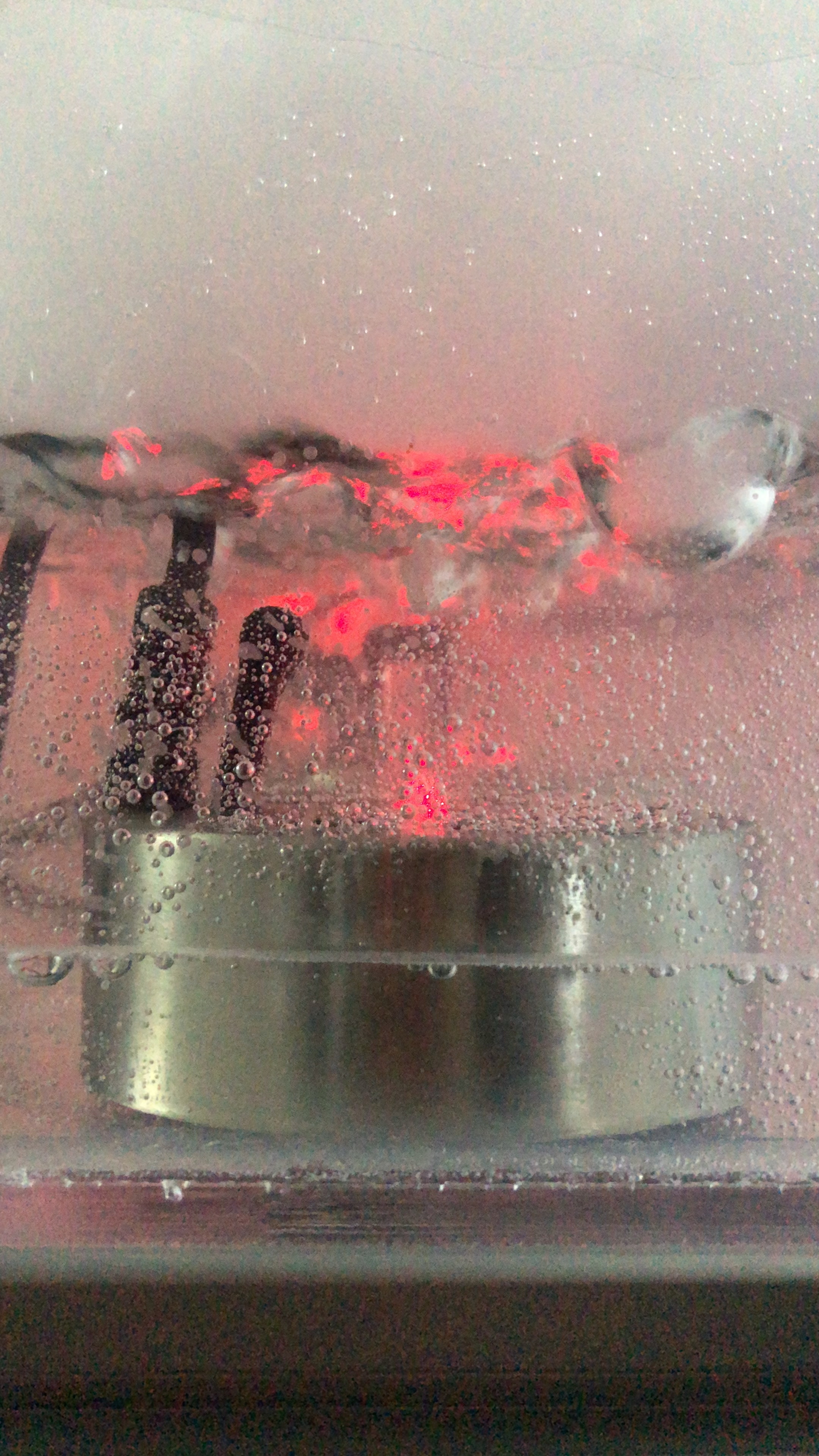

10 •  Close-up of one the mist generators in function.

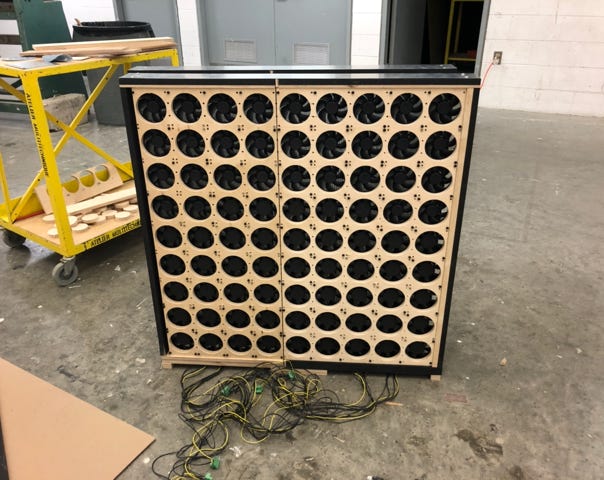

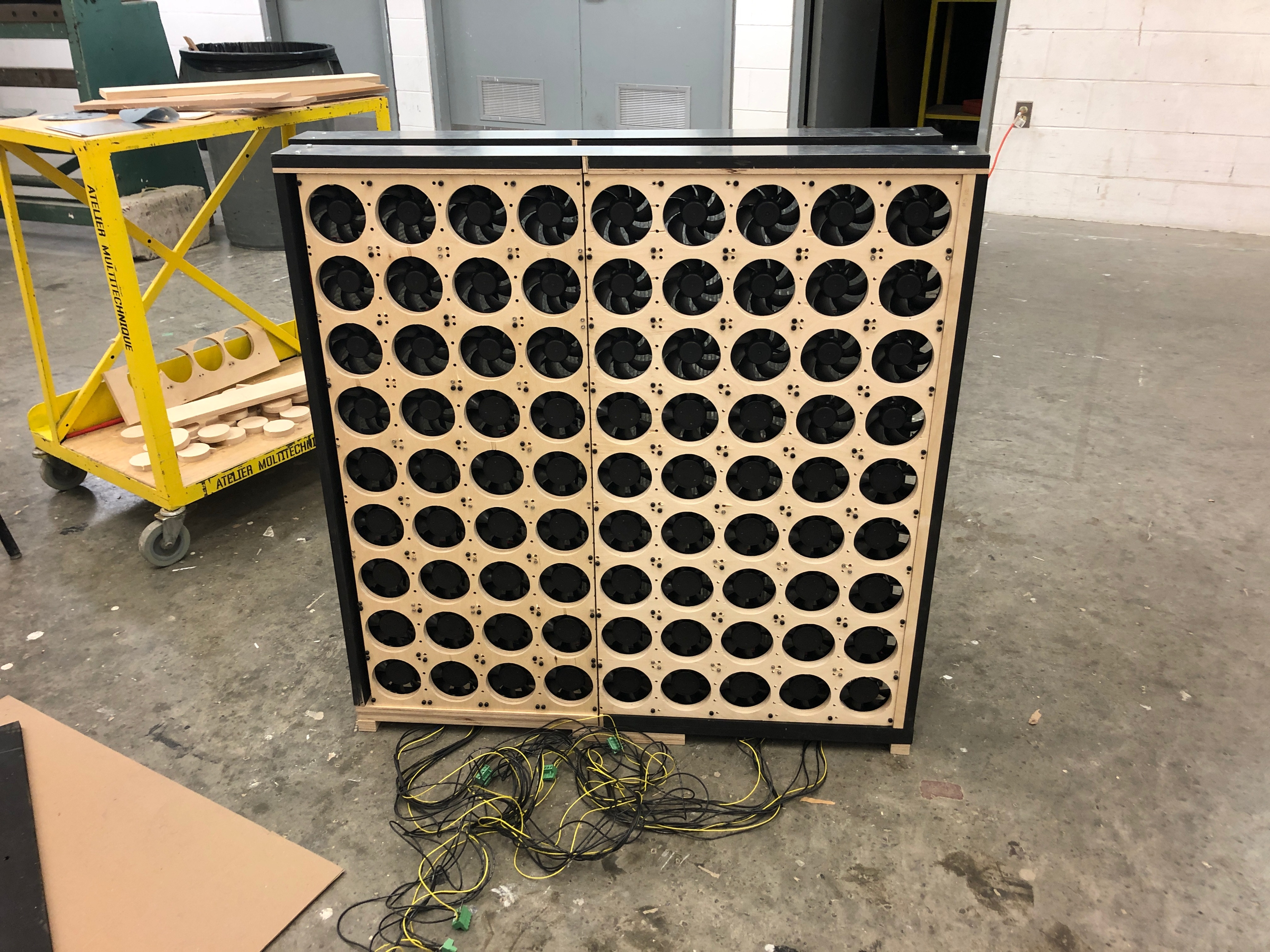

11 •  Array of 81 silent, waterproof micro-fans. The separation in two parts allows to limit transportation costs. The role of this device is to extract the air from the enclosure, so as to generate the air flows that crosses the intake honeycomb panels..

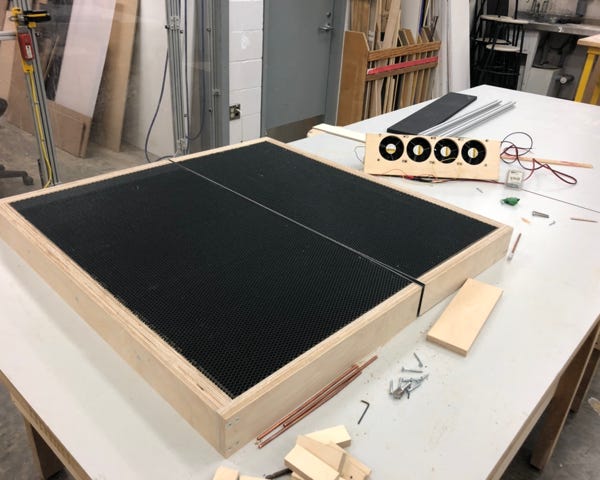

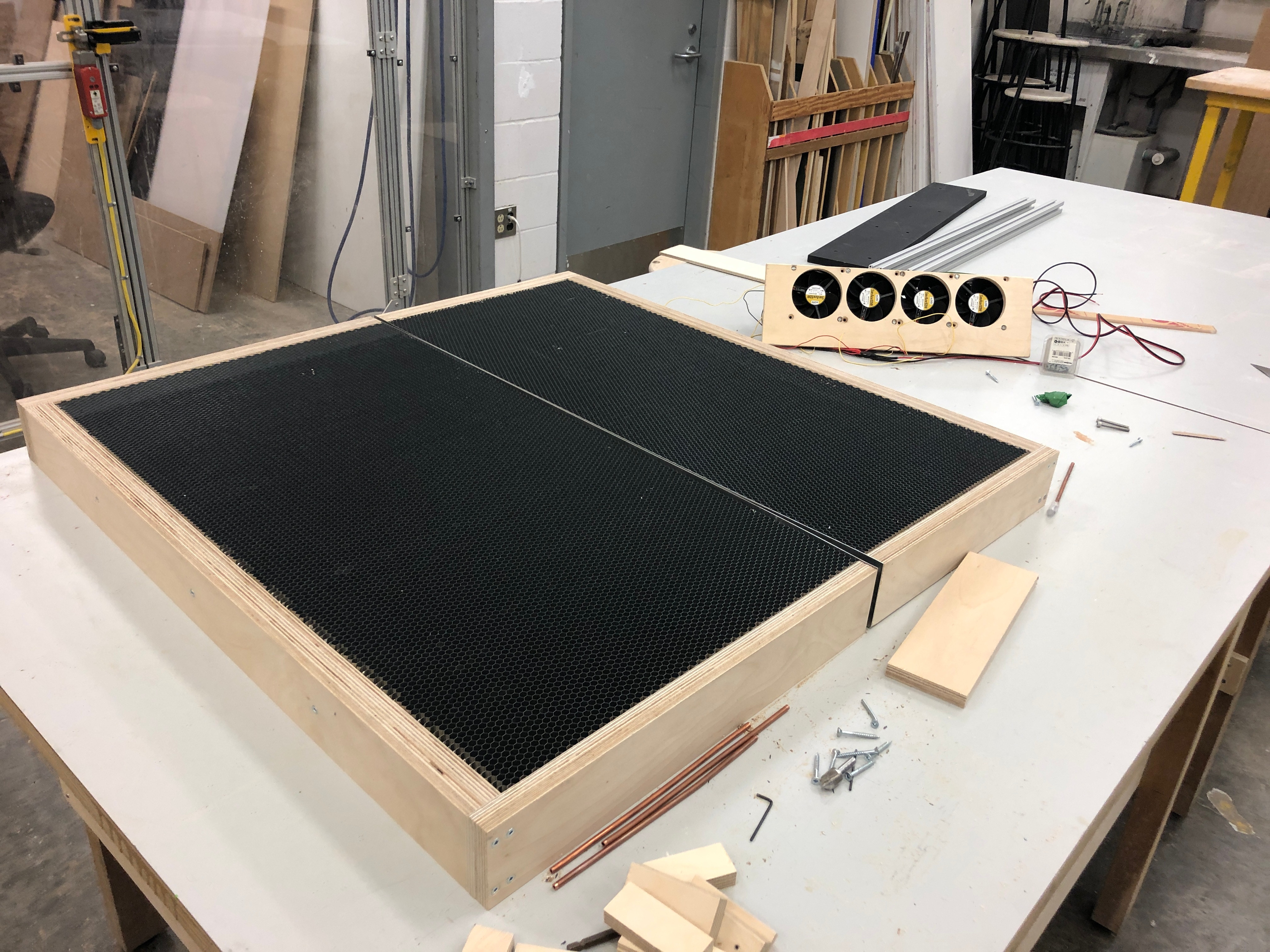

12 • Aluminum honeycomb panel in its frame, before being installed on the apparatus.
